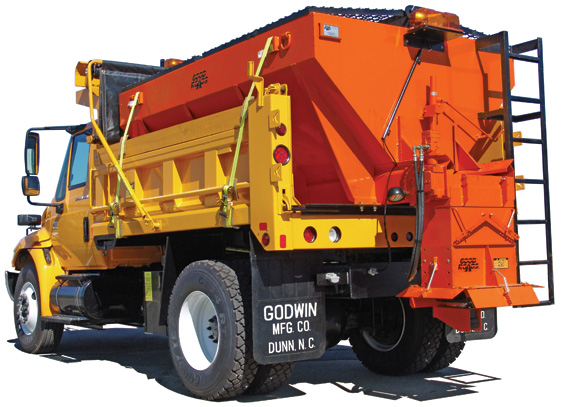

V-box Spreader System

All lengths have a standard overall height of 50" and an inside width of 78". Standard conveyor door opening is 10" x 20". All major V-Box spreader components (unless stainless) are zinc primed and powder coated for a finish that is 700% more corrosive resistant than traditional paint and primer.

Standard Specifications

• 10 Gauge Construction (whether steel or stainless steel)
• Bolt In Conveyor Floor

• Replaceable Chain Covers

• 2” Conveyor Drive Shaft

• 8 Tooth Keyed Drive Sprocket (replaceable)

• 25:1 Enclosed Lubricated Worm Gear (USA made)

• 1-1/2” Idler Shaft

• Greasable Flange Bearings on Drive and Idler Shaft



• 24” wide, 2-1/4” Pitch Conveyor Chain
• 1/4” x 1-1/2” Chain Bar Flights
• 10” x 20” Feed Gate Opening
• Adjustable Jack for Feed Gate (ground controlled)
• Tilt Up Spinner Chute
• 18” Urethane Spinner Disc
• 4 Tie Down Brackets
• Straight Rear Wall and 26º Tapered Front Wall
• External Side Bracing

Commonly Available Options

• 201 or 304 Stainless Construction
• Hinged Screens
• Inverted “V” Conveyor Bridge
• Spring Loaded Idler Chain
• Remote Idler Grease Fittings
• Chain Oiler
• Electric or Hydraulic Pre-Wet System
• 12” Sides Extensions
• Sloping Front (for telescopic hoists)
• Service Ladder
• 3/8” Chain Bar Flights
• 3/16” Conveyor Floor



• Cab Shield
• Winch Up Spinner Chute (tilting std.)
• 50:1 Gearbox
• Motor Over Spinner Disc Option
• Diverter Chute
• Tailgate Latch Kit
• 2” PVC Coated Nylon Tie Down Kit
• Dual Flow Control Valve (manual)
• Electric Spreader Control (numerous options)
• Spot Light
• S,T,T, Rear Light Bar

• Safety Light(s), (numerous options)
• Color Options
• Spreader Stand
